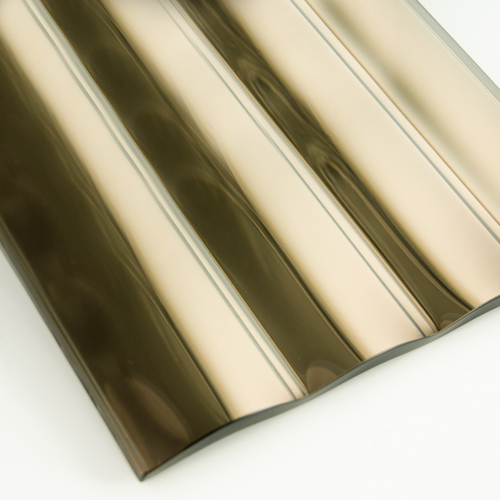

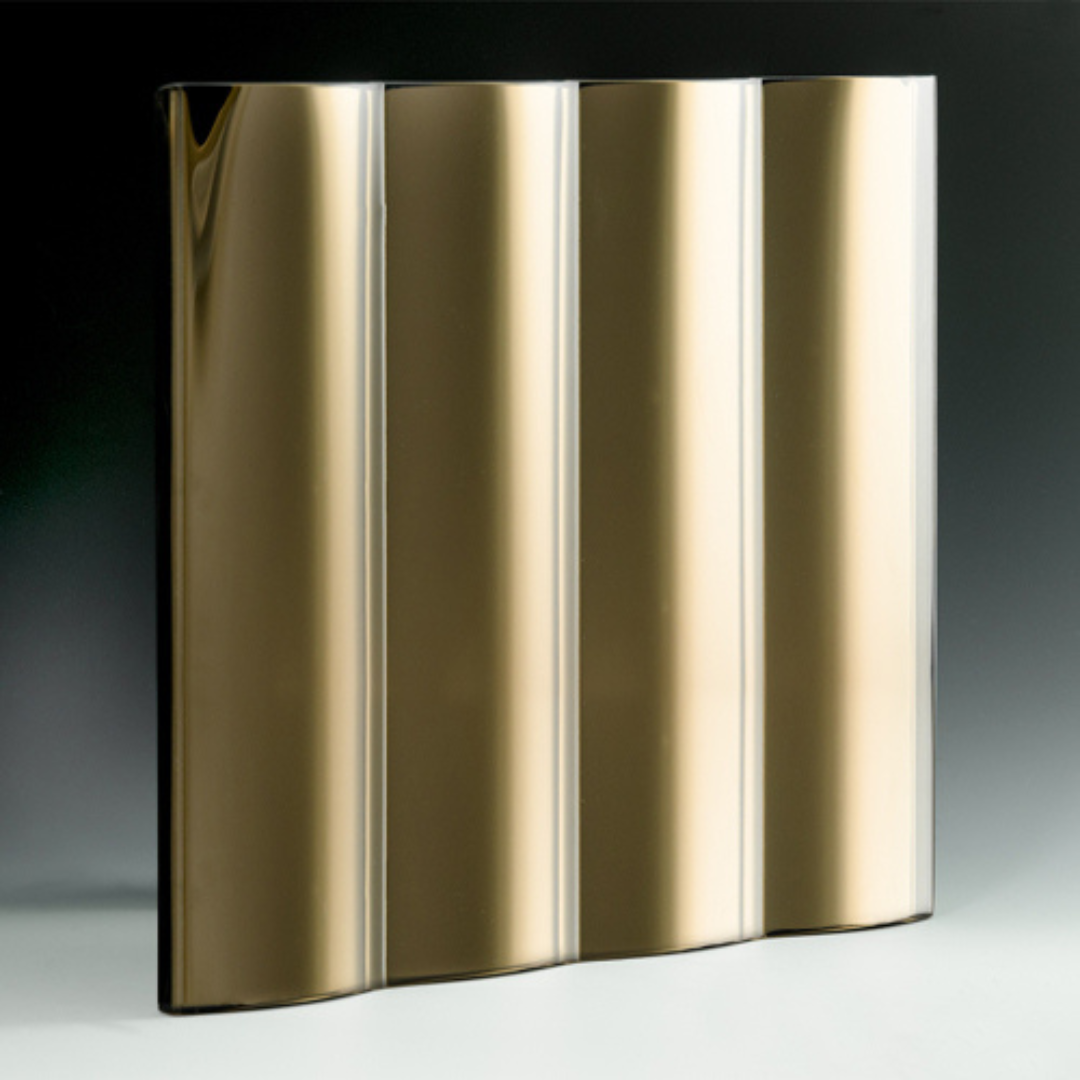

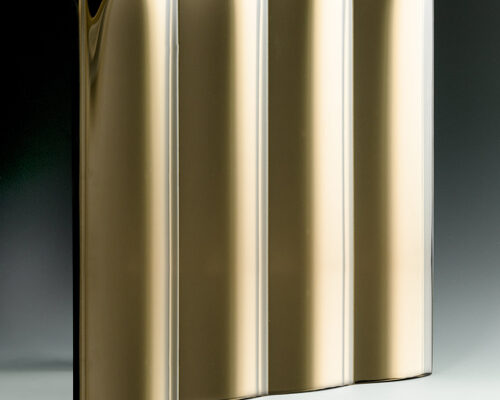

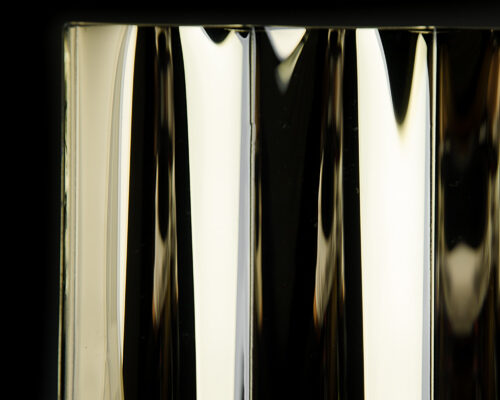

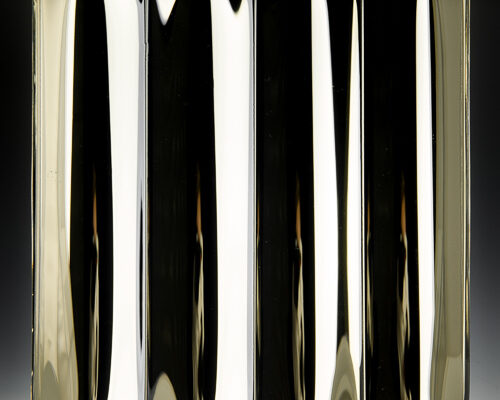

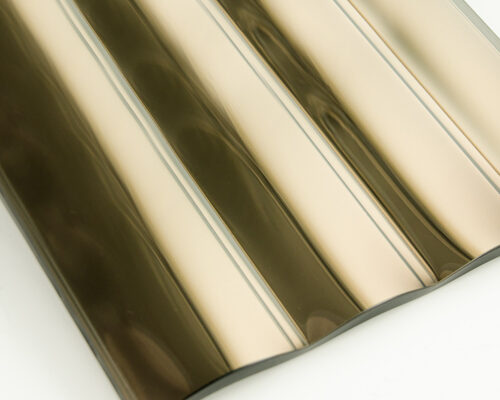

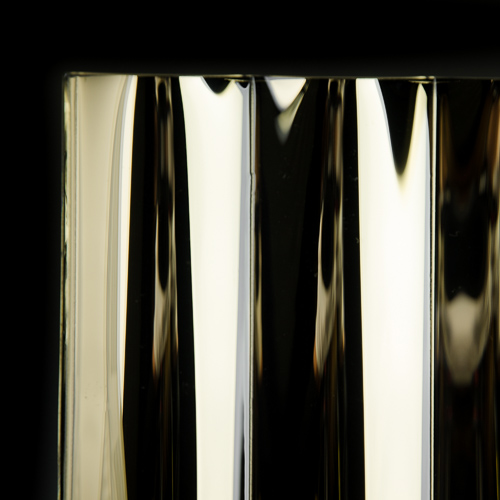

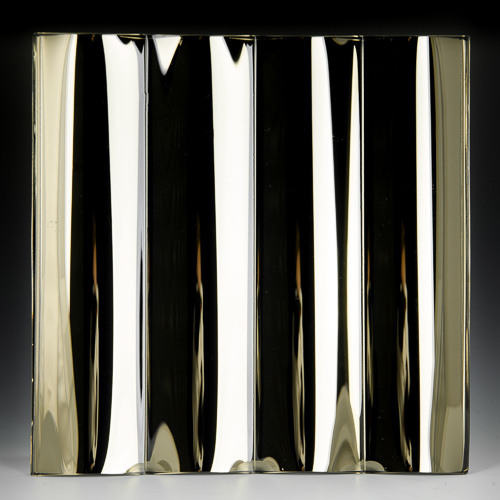

Cathedral Grande Bronze Silvered Glass

Cathedral Grande Bronze Silvered Glass, part of Nathan Allan’s exclusive Freeform Series, is exciting, new, and the first “texture less” kiln formed glass in our industry. Designed for architects and interior designers who prefer a structured linear glass pattern for their projects.

Application: Cladding, Dividers, Doors, Façade, Back Walls, Back Bars, Columns

Description

Minimum Panel Size 1’0 x 1’0  (300 mm x 300 mm)
Standard Maximum Panel Size –Single layers of tempered glass 1/4″ Glass – 4’0 x 9’0 (6mm glass – 1219mm x 2743mm)

3/8” Glass – 3’0 x 8’0 (10mm – 914mm x 2438mm)

1/2″ Glass – 2’6 x 8’0 (12mm – 762mm x 2438mm)

Standard Maximum Panel Size –Double layers of laminated glass 1/2” Glass – 4’0 x 9’0   (12mm glass – 1219mm x 2743mm)

5/8” Glass – 5’0 x 10’0 (15mm glass – 1524mm x 3048mm)

Finished Panel Size All orders are produced with finished, cut to size, ready to install panels
Panel Thickness 3/8”, 1/2″ (10mm, 12mm)
Glass Types Clear · Low Iron · Bronze · Black
Edgework Machine flat polished
Flat Margins Outside Vertical Edges – from 1/4″ to 3/4″ (6mm to 19mm). Interior Vertical Edges – 1/8” to 1/4″ (4mm to 6mm)
Pattern Details If using 3/8” (10mm) thick flat glass, after pattern is formed, overall pattern thickness increases to 5/8″ (15mm). Pattern thickness may vary , so allow 1/16” (2mm) variance. Front surface has a Convex shape, while back surface has a Concave shape. Individual flutes are 3” (76mm) wide.
Safety Tempered, Laminated
Viewing Silvered glass is designed to be pressed against another wall surface and viewed only from the front side.
Cleaning Our glass products can be cleaned with liquid cleaners and paper towels, or soft clothes. Liquid cleaners without ammonia will help reduce streaks on the glass. Avoid all abrasive cleaning materials.
