Blacked Fluted Silver Reed

Fluted Black Silvered Architectural Cast Glass is part of Nathan Allan’s very exclusive Freeform Series. As a result, one will find that these glass designs are unique and one of a kind. Likewise we are proud to boast that all 33 designs were created by Nathan Allan artists. Fluted Black Silvered Glass is definitely a Nathan Allan original.

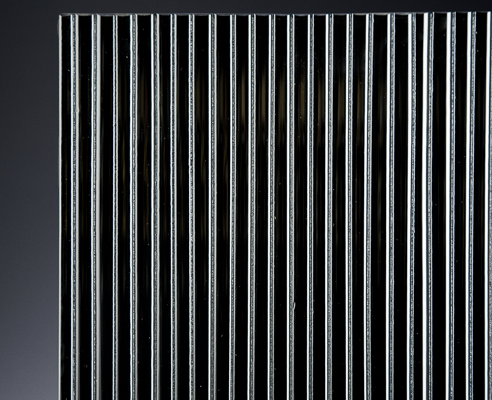

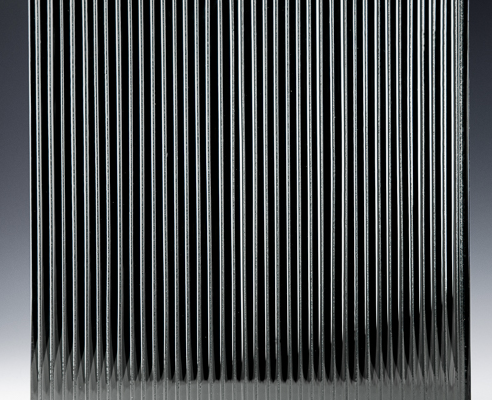

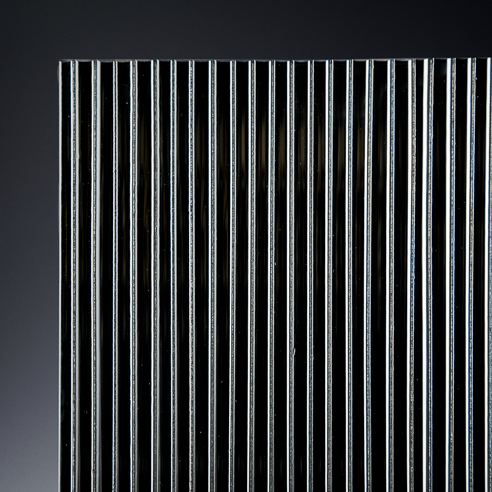

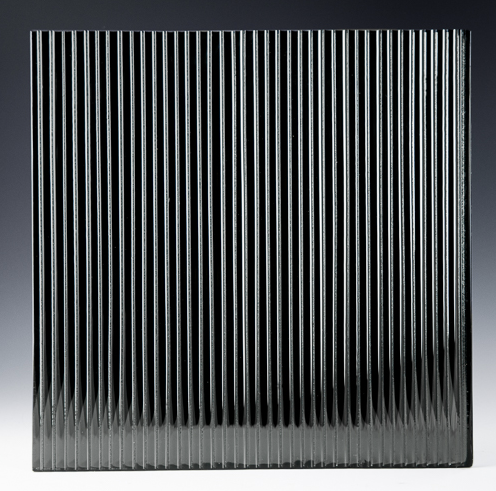

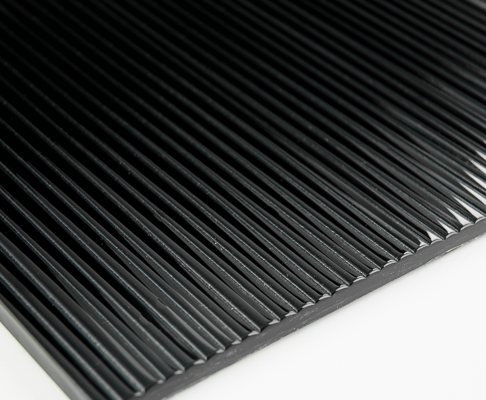

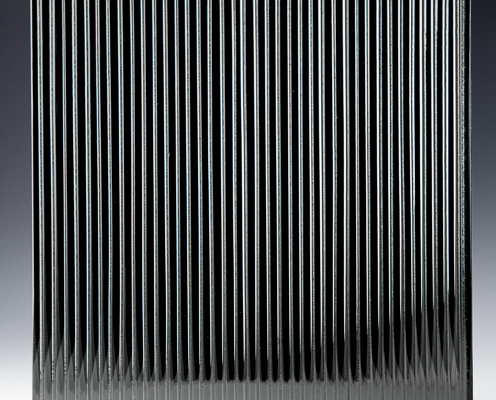

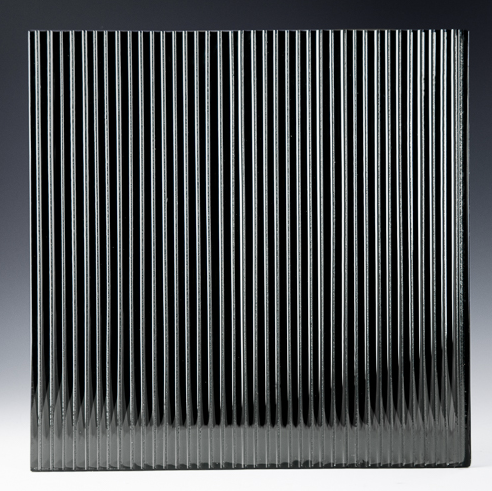

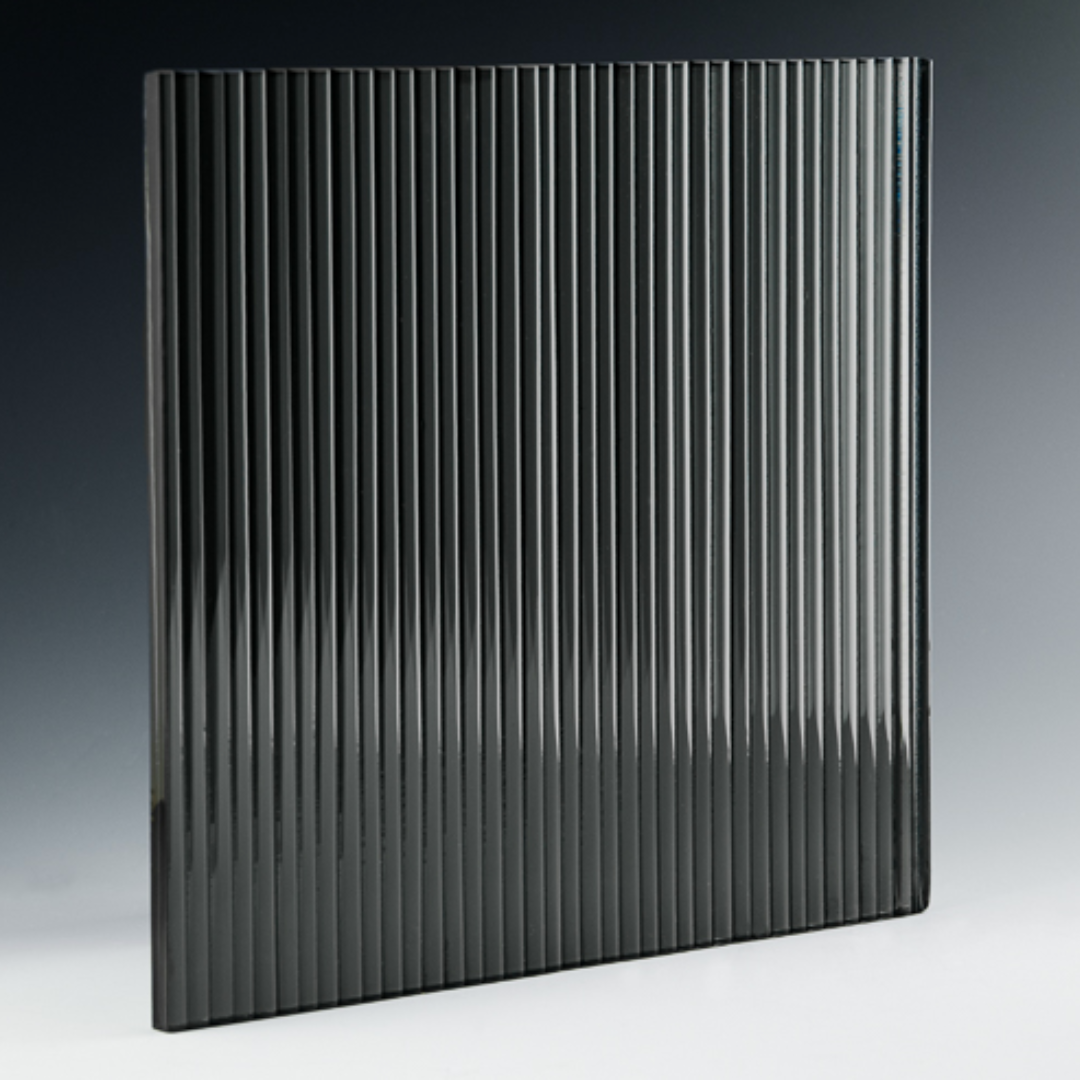

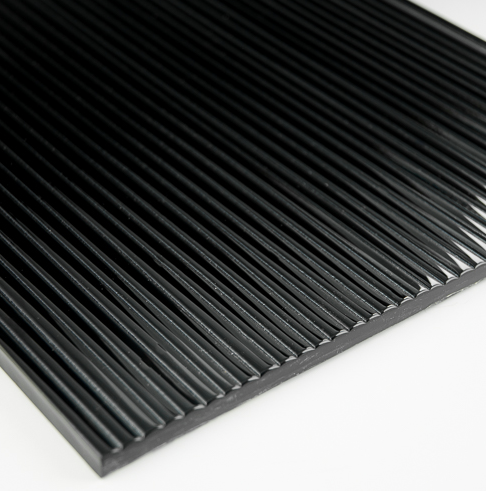

Fluted Black Silvered Architectural Cast Glass, part of Nathan Allan’s exclusive Freeform Series, is the first “texture less” kiln formed glass in our industry. Inspired by ancestral Architecture, Fluted Black Silvered is one of many linear designs, newly created by Nathan Allan. Freeforming Flutes are created within this design, each at 1/4″ (6mm) wide. Each flute is separated by a thin, textured, continuous crease. The 3D convex surface of each flute provides a unique, contrasting privacy within the elegant linear design. This Classic Architectural pattern is once again bringing life to historical designs.

Experience the sophistication and sustainability of Nathan Allan’s office furniture, proudly presented by Frontier Workspace, serving customers in Hong Kong and all over Asia.

Application: Balustrade, Cladding, Dividers, Doors, Partitions, Façade, Feature Walls, Windows



Categories: , , , , , Tags: , , ,

Description

Minimum Panel Size 1’0 x 1’0  (300 mm x 300 mm)
Standard Maximum Panel Size –Single layers of tempered glass 1/4″ Glass – 4’0 x 9’0 (6mm glass – 1219mm x 2743mm)

3/8” Glass – 3’0 x 8’0 (10mm – 914mm x 2438mm)

1/2″ Glass – 2’6 x 8’0 (12mm – 762mm x 2438mm)
Standard Maximum Panel Size –Double layers of laminated glass 1/2” Glass – 4’0 x 9’0   (12mm glass – 1219mm x 2743mm)

5/8” Glass – 5’0 x 10’0 (15mm glass – 1524mm x 3048mm)
Finished Panel Size All orders are produced with finished, cut to size, ready to install panels
Panel Thickness Single layer tempered glass – 1/4″, 3/8”, 1/2″ (6mm, 10mm, 12mm)

Laminated Glass – 5/8” to 3/4″ (15mm, 19mm)
Glass Types Clear · Low Iron · Bronze · Black · View All Glass Types
Edgework Machine flat polished
Flat Margins Outside Vertical Edges – from 1/4″ to 3/4″ (6mm to 19mm). Interior Vertical Edges – 1/8” to 1/4″ (4mm to 6mm). Top & Bottom Edges – 1/4″ to 3/4″ (6mm to 19mm) · More about Flat Margins
Pattern Details Individual Flutes are 1/4″ (6mm) wide. Back surface is flat. Flutes can run in vertical or horizontal direction.
Safety Tempered, Laminated
Viewing Silvered glass is designed to be pressed against another wall surface and viewed only from the front side.
Cleaning Our glass products can be cleaned with liquid cleaners and paper towels, or soft clothes. Liquid cleaners without ammonia will help reduce streaks on the glass. Avoid all abrasive cleaning materials. Water and moisture should not come in contact with the glass edges or silvered backing.
