Cathedral Grande Low Iron

Cathedral Grande Low Iron Architectural Cast Glass. Included in Nathan Allan’s exclusive Freeform Series, Cathedral Grande Low Iron glass is one of 6 new “texture less” kiln formed glass designs. Texture-less designs are a first in our industry, and exclusively created by Nathan Allan. Inspired by ancestral Architecture, Cathedral Grande Low Iron is in our family of Linear Architectural patterns. Free-forming Flutes are created within this design, each at 3” (76mm) wide. Each flute is separated by a thin, continuous crease, which helps to define the individual flutes. The front convex surface of each flute provides an interesting 3-Dimensional design and privacy effect within this elegant linear design.

The back surface of our Cathedral Grande Low Iron Architectural Cast Glass is concaved, and also provides a unique appearance and privacy effect. Light will travel through the glass, enhancing the pattern details and amplifying the rich, black color. This Classic Architectural pattern is once again bringing life to historical designs.

Application: Balustrade, Cladding, Dividers, Doors, Partitions,  Façade, Feature Walls, Windows

Frontier Workspace, your prime source for Nathan Allan’s top-tier office furniture, serving discerning customers in Hong Kong and across Asia.

Description

Specifications

Minimum Panel Size 1’0 x 1’0  (300 mm x 300 mm)
Standard Maximum Panel Size  5’0 x 10′  (1500 mm x 3000 mm)
Custom Maximum Panel Size Some textures can be produced up to 6’0 x 11’6 (1800 mm x 3500 mm)

Contact Nathan Allan for specific details

Finished Panel Size All orders are produced with finished, cut to size, ready to install panels
Panel Thickness 3/8”, 1/2″ (10mm, 12mm)
Glass Types Clear · Low Iron · Bronze · Black · View All Glass Types
Edgework Machine flat polished
Flat Margins Outside Vertical Edges – from 1/4″ to 3/4″ (6mm to 19mm). Interior Vertical Edges – 1/8” to 1/4″ (4mm to 6mm) · More about Flat Margins

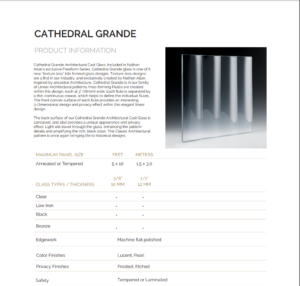

Pattern Details If using 3/8” (10mm) thick flat glass, after pattern is formed, overall pattern thickness increases to 5/8″ (15mm). Pattern thickness may vary , so allow 1/16” (2mm) variance. Front surface has a Convex shape, while back surface has a Concave shape. Individual flutes are 3” (76mm) wide. Click on “Product Info” button below, for detailed drawings.
Color Finishes Lucent, Pearl · View All Colors
Privacy Finishes Frosted or Etched
Safety Tempered or Laminated
Cleaning Our glass products can be cleaned with liquid cleaners and paper towels, or soft clothes. Liquid cleaners without ammonia will help reduce streaks on the glass. Avoid all abrasive cleaning materials.
