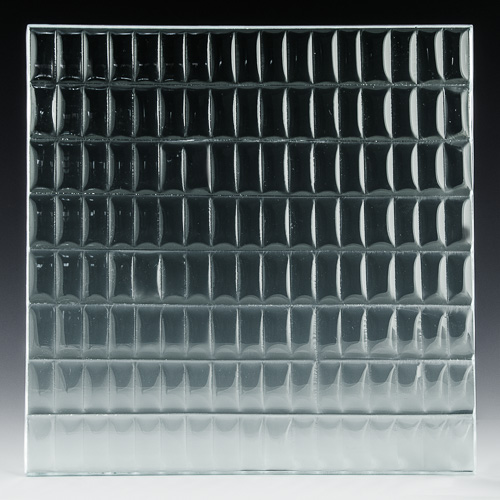

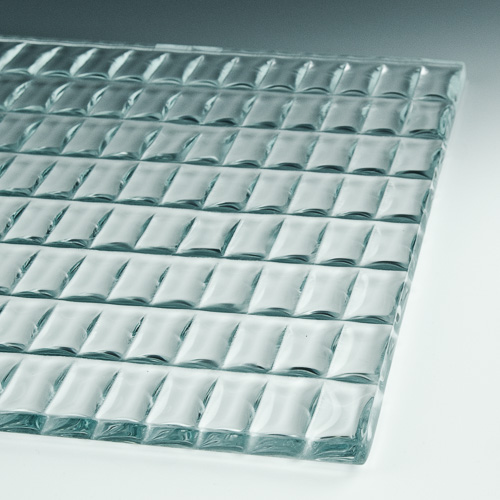

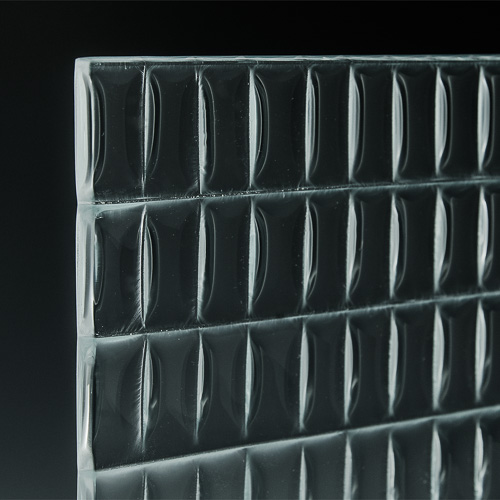

Lattice Textured Glass

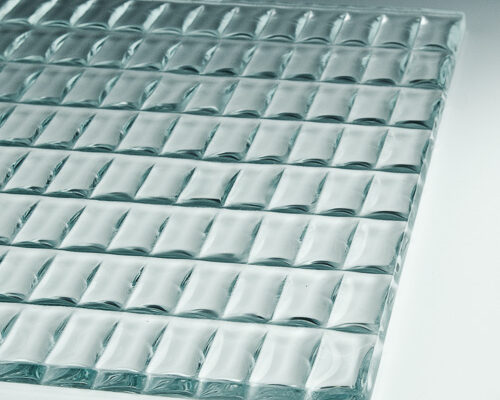

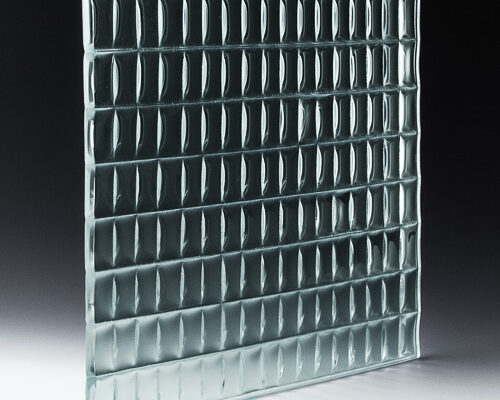

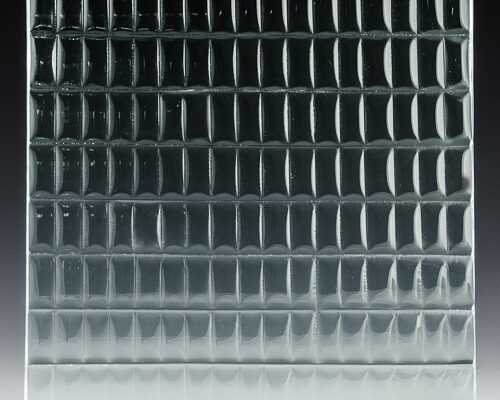

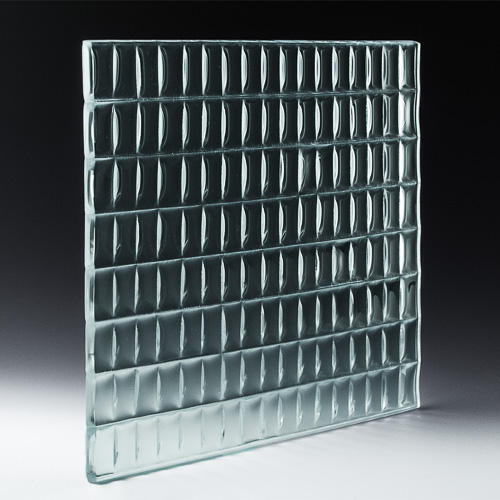

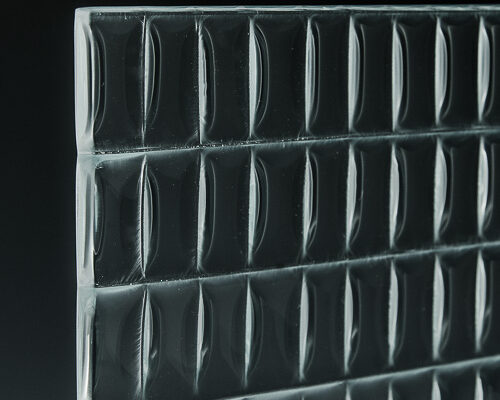

Formation Series Lattice Textured Glass is an off shoot of our extremely popular Convex Glass Series. Produced with a Convex Style mold, the design is reduced in size to create a dazzling, micro pattern. This contemporary glass can be produced in clear or low iron glass, and in panels up to 5’0 x 10’0. Each panel will be safety tempered to meet building code requirements. For added effect, frosted, fire frosted, and color finishes can be easily applied to create a stronger privacy effect or a more colorful appearance.

Experience the sophistication and sustainability of Nathan Allan’s office furniture, proudly presented by Frontier Workspace, serving customers in Hong Kong and all over Asia.

Applications: Balustrade, Cladding, Dividers, Doors, Façades, Feature Walls, Lighting, Partitions, Storefront, Windows




Minimum Panel Size 1’0 x 1’0  (300 mm x 300 mm)
Standard Maximum Panel Size  5’0 x 10′  (1500 mm x 3000 mm)
Custom Maximum Panel Size Some textures can be produced up to 6’0 x 11’6 (1800 mm x 3500 mm)

Contact Nathan Allan for specific details

Finished Panel Size All orders are produced with finished, cut to size, ready to install panels
Panel Thickness 1/4″, 3/8”, 1/2″, 5/8”, 3/4″ (6mm, 10mm, 12mm, 15mm, 19mm)

8mm Low Iron N/A

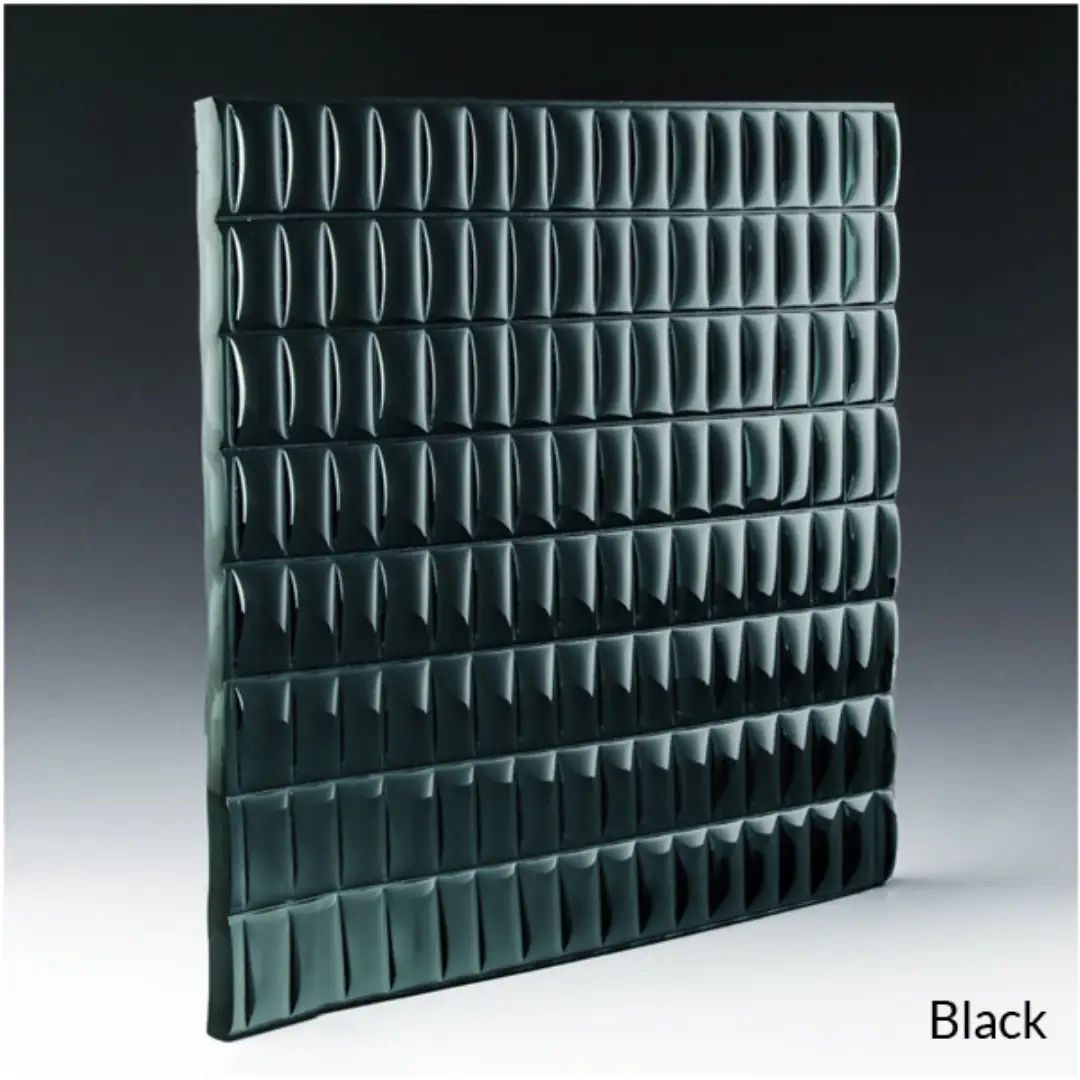

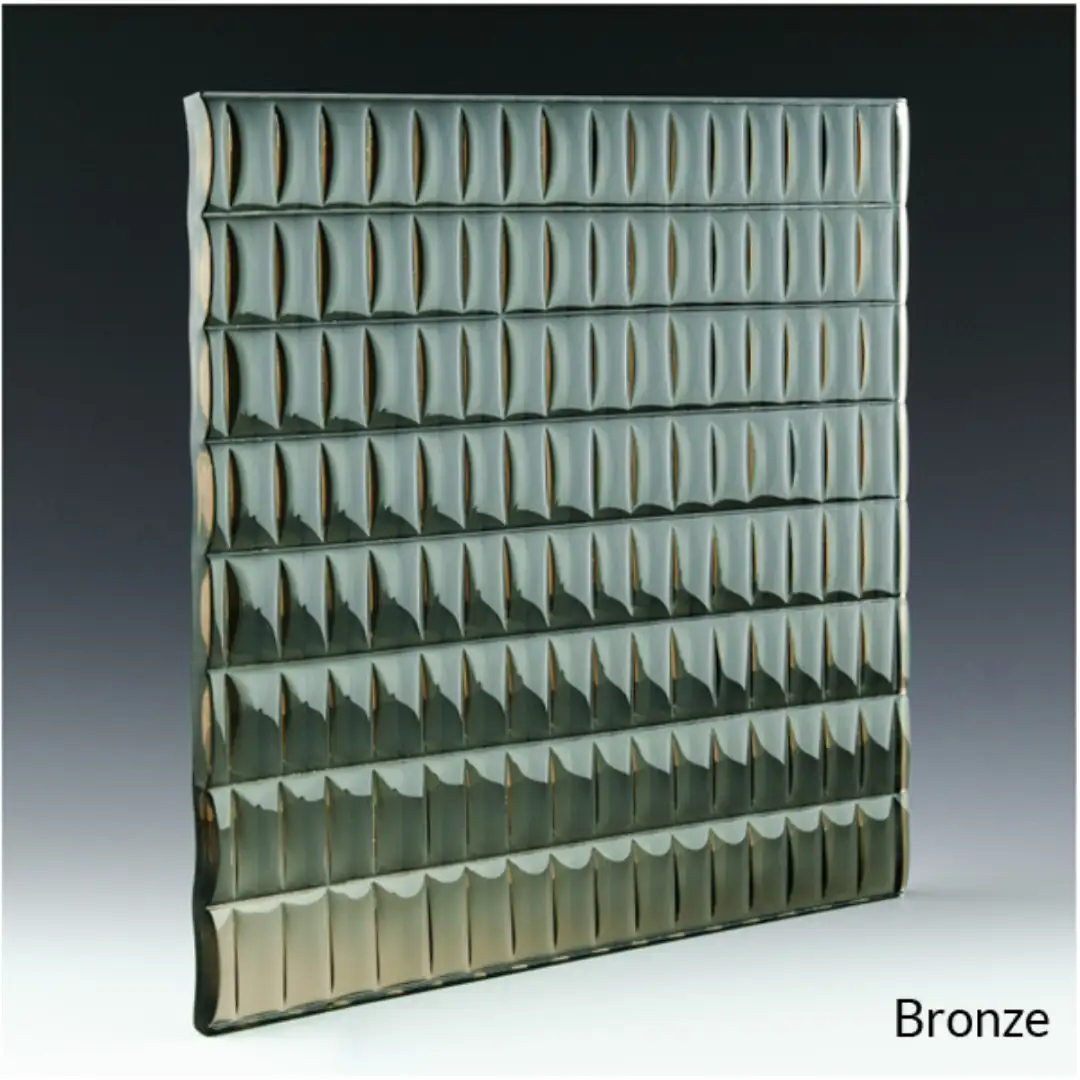

Glass Types Clear · Low Iron · Bronze · Black
Edgework Machine flat polished
Color Finishes Lucent · Pearl
Privacy Finishes Frosted or Etched
Safety Tempered, Laminated
Cleaning Our glass products can be cleaned with liquid cleaners and paper towels, or soft clothes. Liquid cleaners without ammonia will help reduce streaks on the glass. Avoid all abrasive cleaning materials.
