Channel Diagonal

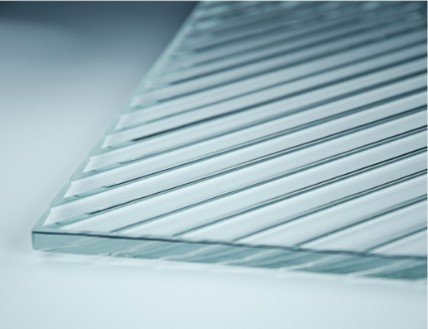

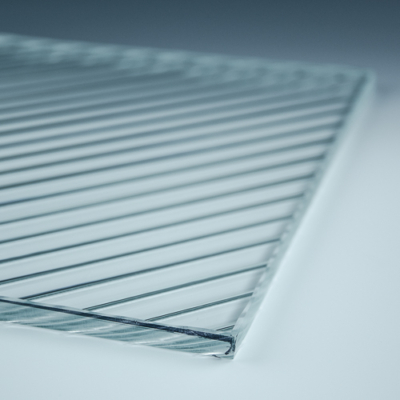

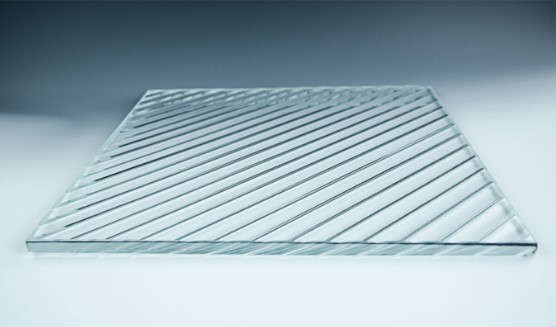

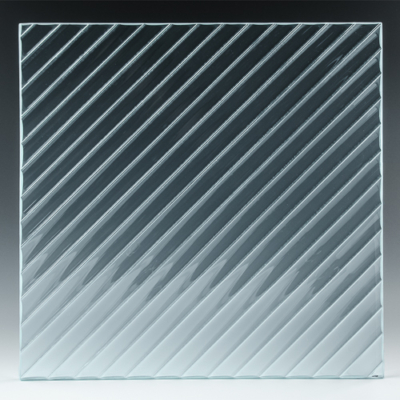

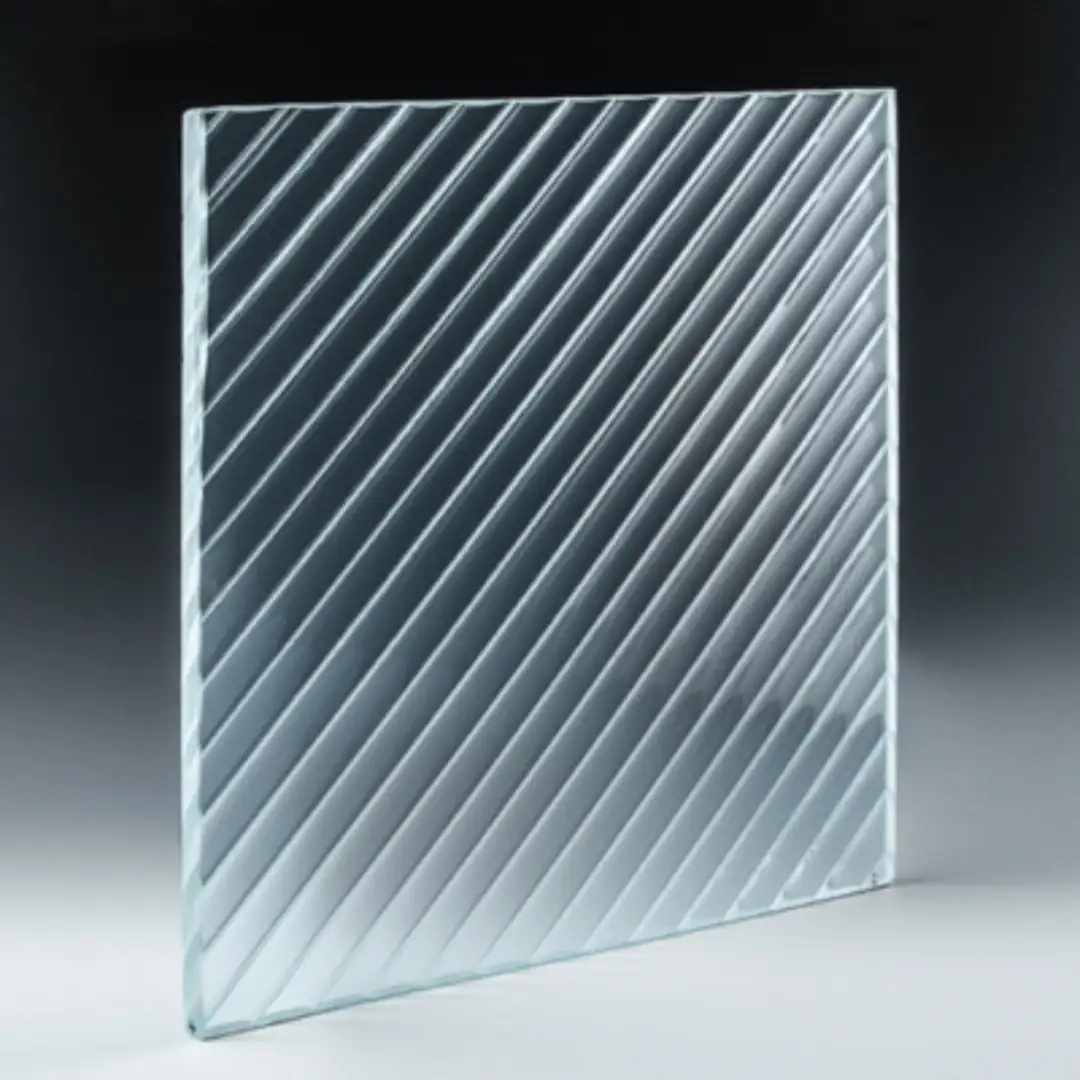

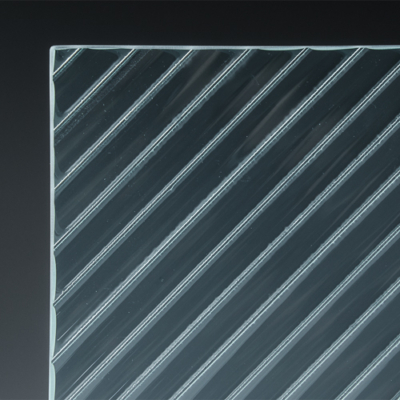

Channel Diagonal Architectural Cast Glass. Included in Nathan Allan’s exclusive Freeform Series, Channel Diagonal Glass is one of 6 new “texture less” kiln formed glass designs. Texture-less designs are a first in our industry, and exclusively created by Nathan Allan. Inspired by ancestral Architecture, Channel Diagonal is in our family of Linear Architectural patterns.

Application: Balustrade, Cladding, Dividers, Doors, Partitions,  Façade, Feature Walls, Windows


Minimum Panel Size 5’0 x 10’0  (1500 mm x 3000 mm)
Clear glass, Low Iron Glass 1/4″ Glass – 6mm glass

3/8” Glass – 10mm glass

1/2″ Glass – 12mm glass

Glass Types Clear · Low Iron · Bronze · Black
Panel Thickness 1/4″, 3/8”, 1/2″ (6mm, 10mm, 12mm)
Edgework Machine flat polished
Color Finishes Lucent, Pearl
Privacy Finishes Frosted, Etched
Flat Margins Outside Vertical Edges – from 1/4” to 3/4“ (6mm to 19mm).
Interior Vertical Edges – 1/8” to 1/4” (4mm to 6mm).
op & Bottom Edges – 1/4” to 3/4” (6mm to 19mm)
Pattern Details Individual Flutes are 5/8” (15mm) wide. Back surface is flat.
Flutes can run in vertical or horizontal direction.irection
Safety Tempered, Laminated
Cleaning Our glass products can be cleaned with liquid cleaners and paper
towels, or soft clothes. Liquid cleaners with out ammonia will help
reduce streaks on the glass. Avoid all abrasive cleaning materials.
