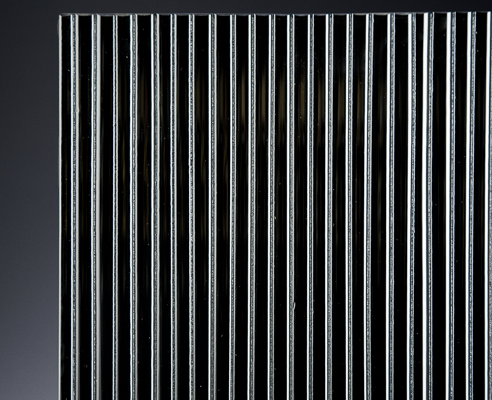

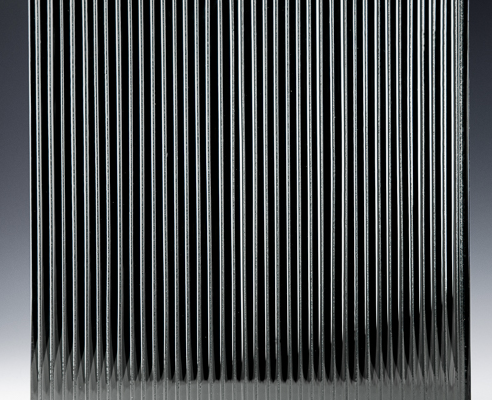

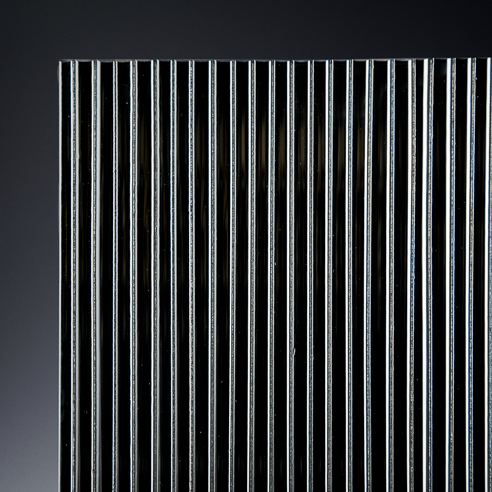

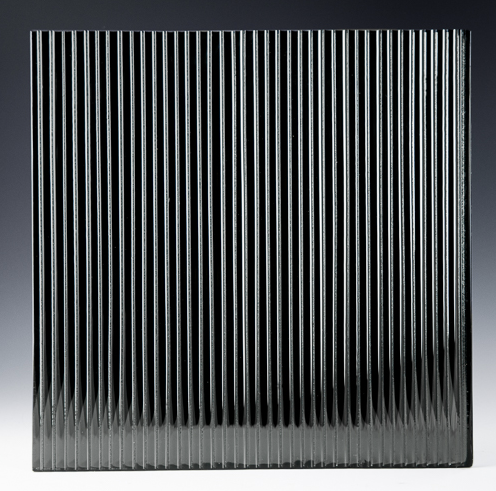

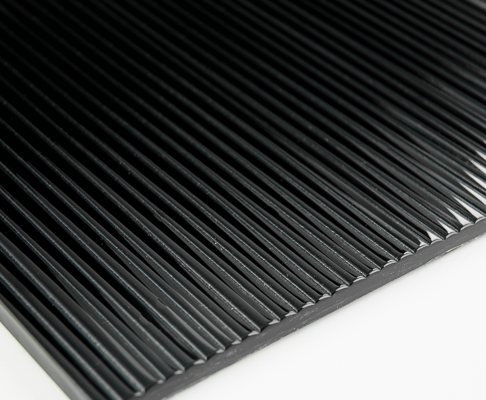

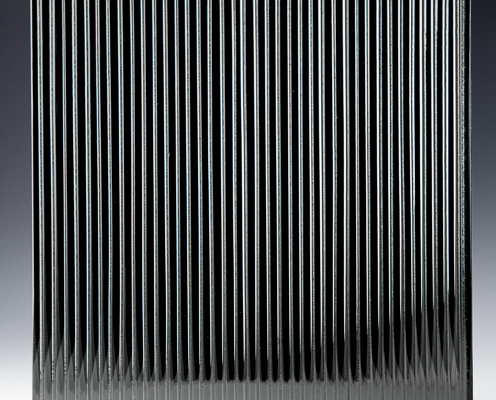

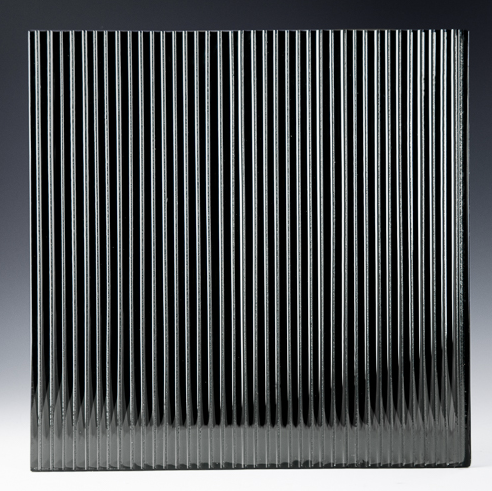

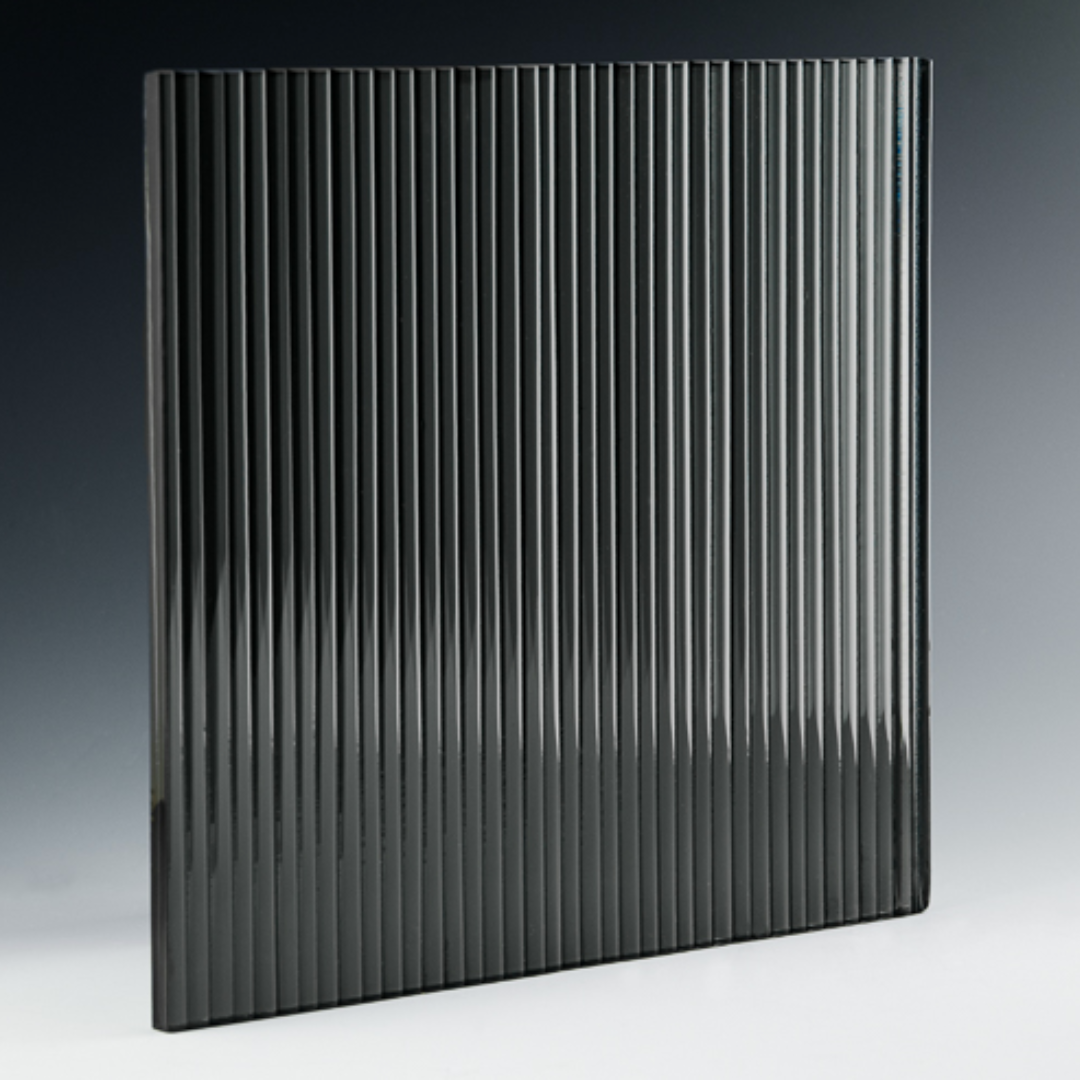

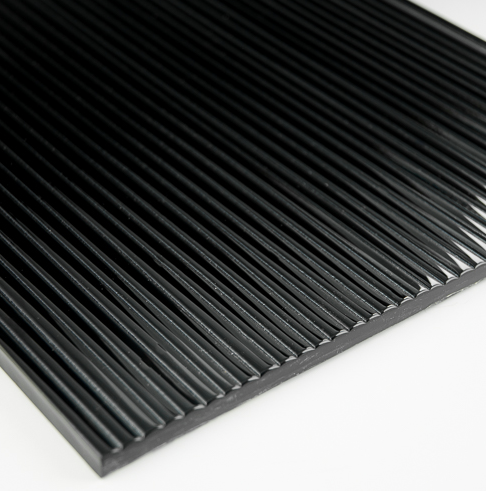

Fluted Black Silvered

Fluted Black Silvered Architectural Cast Glass is part of Nathan Allan’s very exclusive Freeform Series. As a result, one will find that these glass designs are unique and one of a kind. Likewise we are proud to boast that all 33 designs were created by Nathan Allan artists. Fluted Black Silvered Glass is definitely a Nathan Allan original.

Our Fluted Black Silvered Architectural Cast Glass provides a dazzling architectural feature that will compliment any build. For this reason, it has become one of our most popular interior designer selections. At the same time, our Fluted Black Silvered glass is also extremely functional. It is often used in conference rooms and feature walls. Accordingly, Fluted Black Silvered Architectural Cast Glass is also featured in partitions, facades, doors and retail storefronts. Fluted Black Silvered Glass will help to sound proof any space, while allowing considerable light transmission.

Experience the sophistication and sustainability of Nathan Allan’s office furniture, proudly presented by Frontier Workspace, serving customers in Hong Kong and all over Asia.

Application: Balustrade, Cladding, Dividers, Doors, Partitions, Façade, Feature Walls, Windows



Categories: , Tags: , , , , ,

Description

Minimum Panel Size 1’0 x 1’0  (300 mm x 300 mm)
Standard Maximum Panel Size –Single layers of tempered glass 1/4″ Glass – 4’0 x 9’0 (6mm glass – 1219mm x 2743mm)

3/8” Glass – 3’0 x 8’0 (10mm – 914mm x 2438mm)

1/2″ Glass – 2’6 x 8’0 (12mm – 762mm x 2438mm)
Standard Maximum Panel Size –Double layers of laminated glass 1/2” Glass – 4’0 x 9’0   (12mm glass – 1219mm x 2743mm)

5/8” Glass – 5’0 x 10’0 (15mm glass – 1524mm x 3048mm)
Finished Panel Size All orders are produced with finished, cut to size, ready to install panels
Panel Thickness Single layer tempered glass – 1/4″, 3/8”, 1/2″ (6mm, 10mm, 12mm)

Laminated Glass – 5/8” to 3/4″ (15mm, 19mm)
Glass Types Clear · Low Iron · Bronze · Black · View All Glass Types
Edgework Machine flat polished
Flat Margins Outside Vertical Edges – from 1/4″ to 3/4″ (6mm to 19mm). Interior Vertical Edges – 1/8” to 1/4″ (4mm to 6mm). Top & Bottom Edges – 1/4″ to 3/4″ (6mm to 19mm) · More about Flat Margins
Pattern Details Individual Flutes are 1/4″ (6mm) wide. Back surface is flat. Flutes can run in vertical or horizontal direction.
Safety Tempered, Laminated
Viewing Silvered glass is designed to be pressed against another wall surface and viewed only from the front side.
Cleaning Our glass products can be cleaned with liquid cleaners and paper towels, or soft clothes. Liquid cleaners without ammonia will help reduce streaks on the glass. Avoid all abrasive cleaning materials. Water and moisture should not come in contact with the glass edges or silvered backing.
